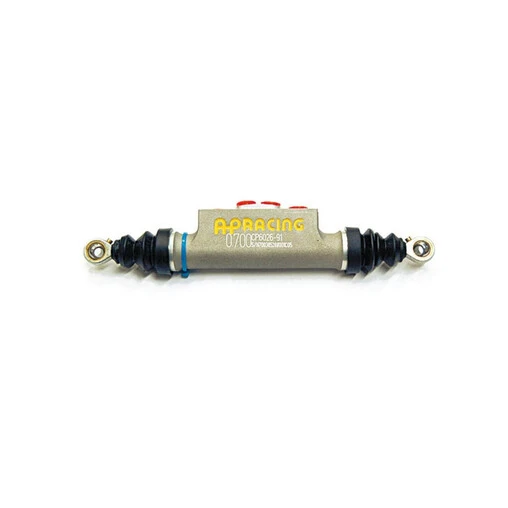

AP Racing Double Ended Handbrake Master Cylinder

AP Racing Double Ended Master Cylinder

• Dual circuit : two inputs and two outputs
• Material : forged aluminium
• Inlet and outlet threads : M10x100
• Rod end spherical bearings and rubber boots included
• AP Racing quality

AP Racing Double Ended Handbrake Master Cylinder Specifications

Light and compact, this AP Racing double ended master cylinder for dual hydraulic handbrake circuits is made of forged aluminium with an anodised finish. The push rod and piston are made in one piece to ensure a high level of strength. It features two 10×100 inlet and two 10×100 outlet threads. Rod end spherical bearings and rubber boots are included.

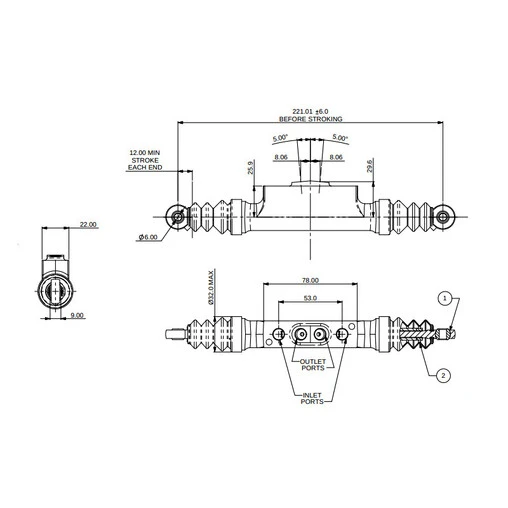

Technical data :

• Weight : 250 grams (0.55 lbs)
• Full stroke : 2×12 mm
• Bore diameter : 17.8 mm (0.70″)
• Travel to cut-off : 0.48 to 0.63 mm (0.19″ to 0.25″)
• Inlet and outlet hydraulic threads : M10x100
