Cybul Toyota 1UZ Clutch Kit For BMW M5X Gearbox

Cybul Clutch Conversion Kit

• Install gearbox from BMW M50, M52, M54, M57 with Toyota 1UZ engine
• Uprated twin disc clutch
• Torque rating over 1100 Nm !
• Smooth and progressive
• Plug and play installation
• Made in Europe

Cybul Clutch Kit 1UZ – M50/M52/M54/M57

Manufactured by Cybul, this clutch kit allows you to install a BMW M50, M52, M54 or M57 (E36, E34, E39, E46…) gearbox on a Toyota 1UZ V8 engine. This high quality assembly guarantees an excellent durability and can withstand more than 1100 Nm of torque while offering a surprisingly smooth operation.

While many uprated clutches lack progressiveness, this Cybul kit enables particularly smooth starts. Thanks to the 240 mm discs and the large friction surface, semi-clutching feels like in a stock car. The strength of the assembly is also exceptional, as this clutch is able to withstand repeated heavy use over a very long period of time.

Flywheel, pressure plate and floating plate are balanced together to prevent any vibration.

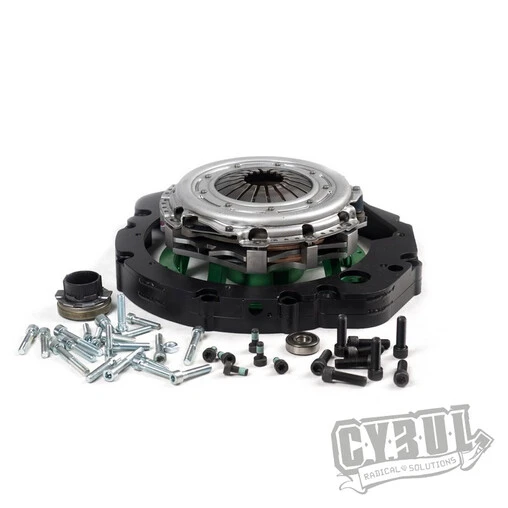

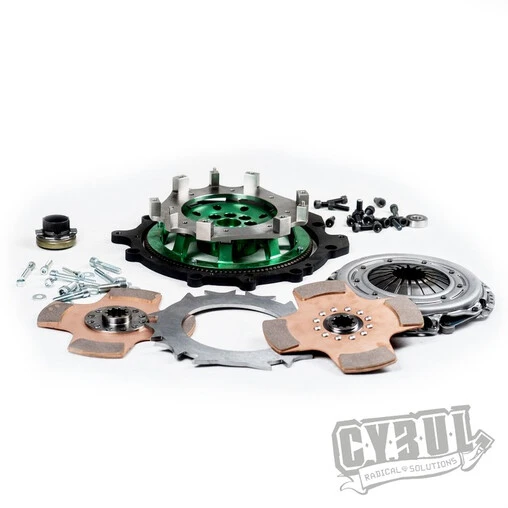

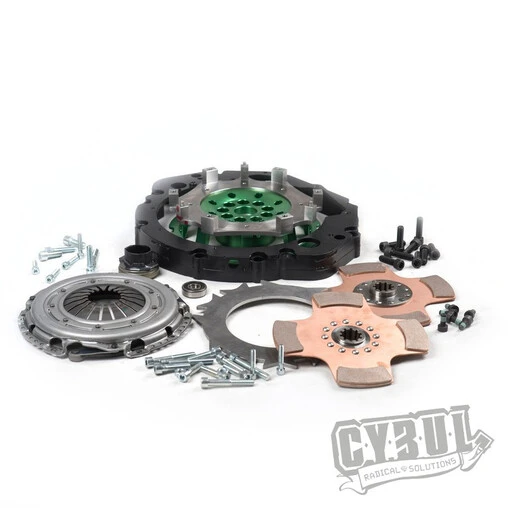

Kit contents:

• CNC machined flywheel
• Floating plate
• Sintered plate x 2
• Pressure plate
• Gearbox adapter
• Release bearing
• Shaft centering bearing
• Bolts and nuts
