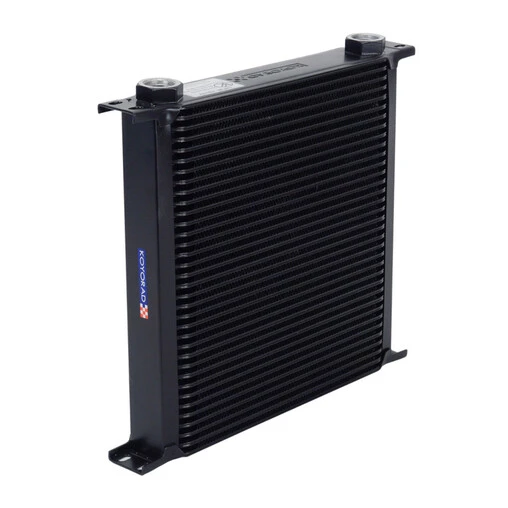

Koyorad 35 Row Universal Oil Cooler

Koyorad Universal Oil Cooler

• For various automotive grade fluids : transmission, power steering, engine, differential
• Number of rows : 35
• Provisions (inlet/outlet) : 10 AN ORB
• Core size : 289 x 273 x 50 mm
• Aluminium construction with black finish
• Pressure tested : 10 bar
• Deformation tested : 35 bar
• Made in Japan by Koyo
• Koyo part no. : XC351111W

Koyorad 35-Row Universal Oil Cooler Specifications

Manufactured by Koyorad in Japan, this universal oil cooler is designed to cool various automotive grade fluids such as: transmission, power steering, engine oil, and differential fluids. Lightweight, efficient and robust, it benefits from an aluminium construction that optimises internal flow for first class cooling, whatever the conditions.

This cooler features versatile -10 AN ORB (O-Ring Boss / O Ring Port) provisions which allow users to reduce AN to AN fittings, or convert from AN to push-lock style barb fittings for any needs, and has been pressure tested to 10 bar and deformation tested to 35 bar. Please note that this item is supplied without hoses, adapter fittings or sandwich adapters.

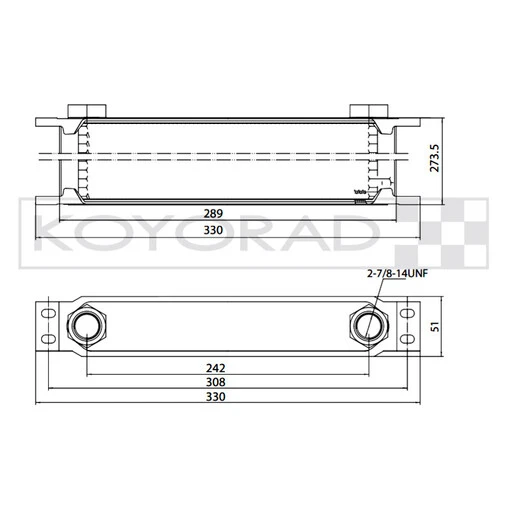

Technical Data

• 35-row core
• Provisions : -10 AN ORB (7/8″-14 UNF)
• Core width : 289 mm
• Core height : 273 mm
• Core thickness : 50 mm
• Dry weight : 2,6 kg
• Volume : approx. 0,9 L
• Pressure tested : 10 bar
• Deformation tested : 35 bar
• Mounting type : universal
