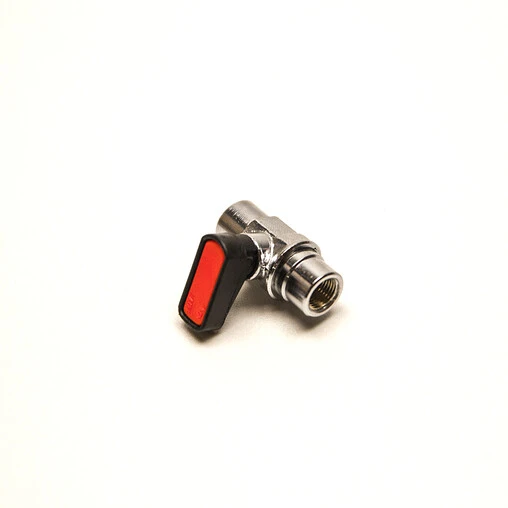

“Line Lock” Quarter Turn (1/4) Valve

Tune your braking !

• Desactivate rear brakes for static burn out
• Or, maintain the pressure in the rear brake system
• Simple, quick installation
• Input and output thread : 1/8″ x 28 BSP
• Supplied with Dash 3 fittings (3/8″x24)

Quarter Turn (1/4) Valve Specifications

The 1/4 turn valve is ideal for shutting off your hydraulic brake circuit. For example, it allows you to maintain the pressure in the rear brake system to immobilise the vehicle. You can also use it to produce long burnouts with a rear wheel drive, without overheating the rear brakes.

Technical information :

• Input : 1/8″ x 28 BSP
• Output : 1/8″ x 28 BSP

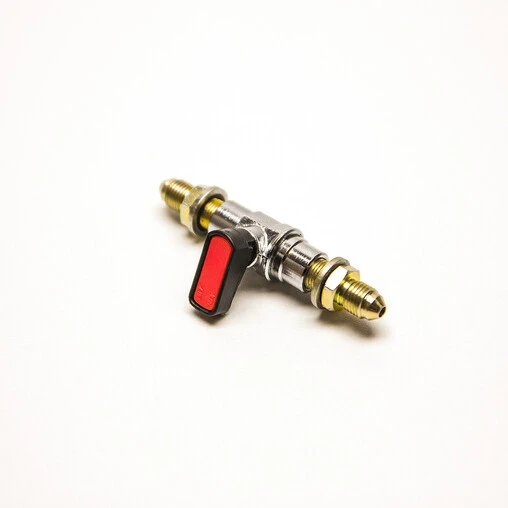

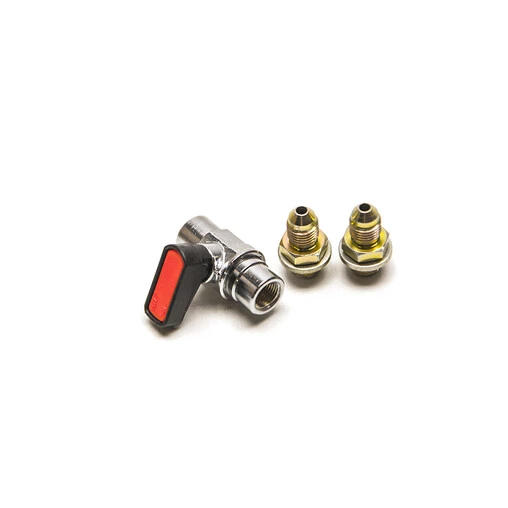

Supplied with the following fittings :

• 2 x male-male, 3/8″ x 24 JIC – 1/8″ x 28 BSP adaptors
