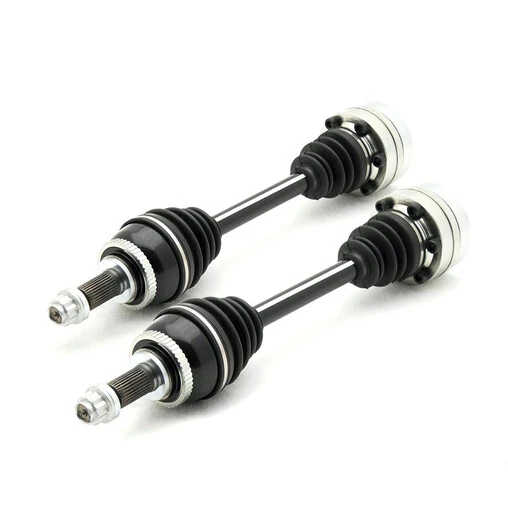

Wisefab Rear Halfshaft Kit For BMW E46

Wisefab Rear Halfshaft Kit

• For BMW E46
• Withstands up to 1500 hp / 1500 Nm
• Perfect for heavy-duty use: drift, rally, drag…
• Maximum reliability for superior longevity
• Extreme tolerance to deformations and twist
• Manufacturer’s part number: WF469

Wisefab Rear Halfshaft Kit Specifications

Engineered for the most intensive uses, this Wisefab rear halfshaft kit for BMW E46 is the ideal solution to ensure high power is efficiently delivered to the ground. Popular with many professional drivers in Formula Drift, D1GP and Drift Masters, these very high quality parts can hold up to 1500 hp and 1500 Nm.

These axles use very strong CV joints and shafts designed in a special alloy characterized by its high-yield strength. They can withstand deformations and twists over 360° to transmit very high torque.

Features

• Max power & torque rating: 1500 hp / 1500 Nm
• 30 spline outer, 6×94 mm (6×3.7″) inner flange
• Length from wheel bearing surface to inner flange: left min 524 mm, max 570 mm / right min 559 mm, max 605 mm
• Max CV operating angle: outer 50 degrees / inner 25 degrees
• Max allowed permanent shaft flex before replacement: 90 degrees
